Question 1 of 10

1. Question

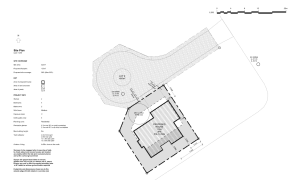

What is a site plan?
- This drawing is viewed from above. It is a horizontal section through a building which allows you to see the different rooms in a house.
- They are drawings of the outside of the building when viewed from the north, south, east and west.
- It is drawn from a bird's eye view. This drawing shows the position of the building on a piece of land in relation to the nearest boundary lines.
- All of the above
Correct

Incorrect
Question 2 of 10

2. Question
Who uses Working Drawings?
- Carpenter
- Client
- Engineer
- Builder (Main Contractor)
- Specialist Trades
- All of the above
Correct

Incorrect
Question 3 of 10

3. Question
What information is on a site plan?
- It includes the overall length and width of a building, internal dimensions of rooms, wall thicknesses, window and door openings, room functions, fixture positions, section planes, scale, floor location, and roof outline.
- They show the building's shape from each direction, roof shape, finished floor level to ceiling height, soffit overhang width, ground level to floor level, positions of doors and windows, window height, type of window, type of exterior cladding and finishing materials, position of porches, decks, garages or carports, and roof cladding.
- These drawings show Foundation shape and sizes, sub-floor construction, floor levels, wall construction, roof construction, window and door heights.
- Overall dimensions of the site, distance from boundaries to building line, building outline, street name, lot number, DP Number, north direction, site datum, FFL, contour lines, driveways, drainage systems, outbuildings, and scale.
Correct

Incorrect
Question 4 of 10

4. Question

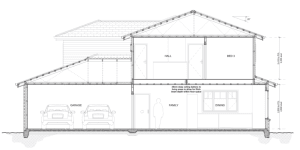

What are sectional drawings?
- They are drawings of the outside of the building when viewed from the north, south, east and west.
- These are drawings of the section when viewde from above.
- These drawings are viewed from the side and show a vertical section through the building.
- These drawings only show a small section of the building but its blown up in great detail.
Correct

Incorrect
Question 5 of 10

5. Question

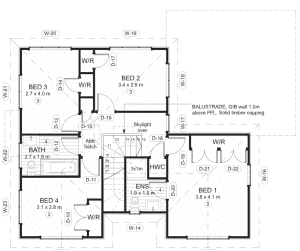

What information is contained in a floor plan?
- Overall dimensions of the site, distance from boundaries to building line, building outline, street name, lot number, DP Number, north direction, site datum, FFL, contour lines, driveways, drainage systems, outbuildings, and scale.
- It includes the overall length and width of a building, internal dimensions of rooms, wall thicknesses, window and door openings, room functions, fixture positions, section planes, scale, floor location, and roof outline.
- They show the building's shape from each direction, roof shape, finished floor level to ceiling height, soffit overhang width, ground level to floor level, positions of doors and windows, window height, type of window, type of exterior cladding and finishing materials, position of porches, decks, garages or carports, and roof cladding.
- All of the above
Correct

Incorrect
Question 6 of 10

6. Question

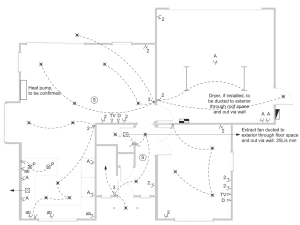

What type of drawing is this?
- Drainage Plan
- Reflective Ceiling Plan
- Ground floor roof plan
- Electrical Plan
Correct

Incorrect
Question 7 of 10

7. Question

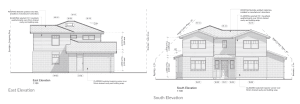

What are elevations?
- These drawings are designed to elevate you.
- They are drawings of the outside of the building when viewed from the north, south, east and west.
- These drawings are viewed from the side and show a vertical section through the building.
- They are drawings that focus on specific parts of the structure in detail, which gives more clarity and accuracy.
Correct

Incorrect
Question 8 of 10

8. Question

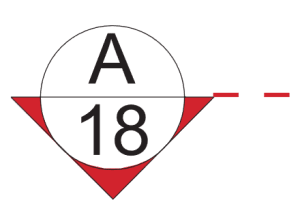

What is this symbol?
- Cross Section Symbol
- Elevation Symbol
- Capillary action
- All of the above
Correct

Incorrect
Question 9 of 10

9. Question
What is this called?
- I dont know?
- Title Block
- Building Consent
- All of the above
Correct

Incorrect
Question 10 of 10

10. Question

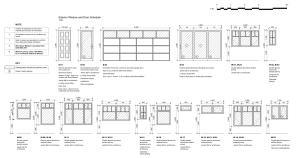

What is this?
- Window Schedule
- Sectional elevations
- Detail drawings
- Window sills
Correct

Incorrect
